Cargoo is our most flexible model for changing family needs

Versatility

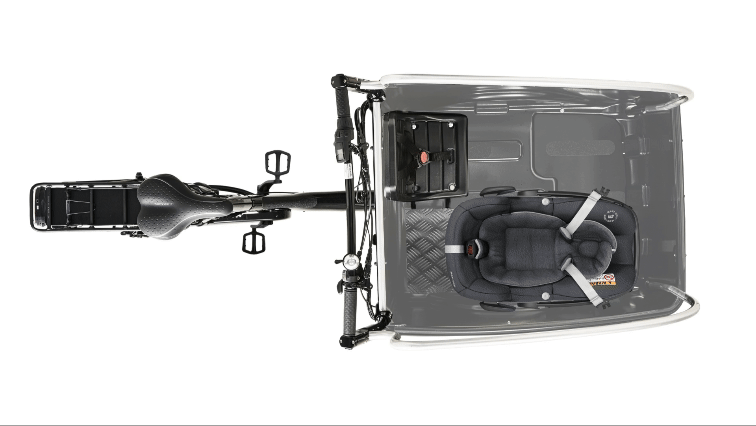

Cargoo is our most spacious cargo bike. It has a 278 L cabin, which is equivalent to the trunk of a small or medium-sized car and can carry up to 100 kg. It can carry up to four children in the cabin reinforced with steel tubes. Choose from a variety of seating options. If you have small children, the ISOFIX Adapter makes your life easier. Simply transfer the car seat to your Cargoo, and vice versa. Are you taking your partner? Then choose the Family Bank that allows children and adults to go. Endless options!

head safety measure

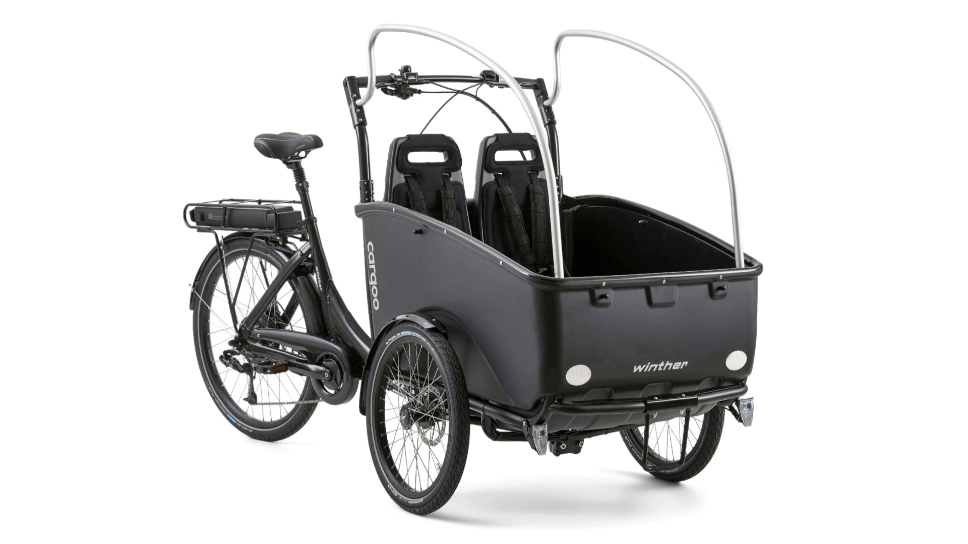

Hood designed for protection

Sturdy 22mm aluminum bars offer protection over children's heads for added safety. It also serves as secondary protection against rain and wind. The hood has four windows and is easy to remove. If it rains, simply replace the canopy on the six attachment points. The canopy opens at the front with two strong YKK zippers and at the rear with two attachment points. It also comes with rubber straps for a snug fit when it needs to stay open. With the Cargoo top, your kids will stay dry but still have a great view.

A pleasure to drive

Spin with ease

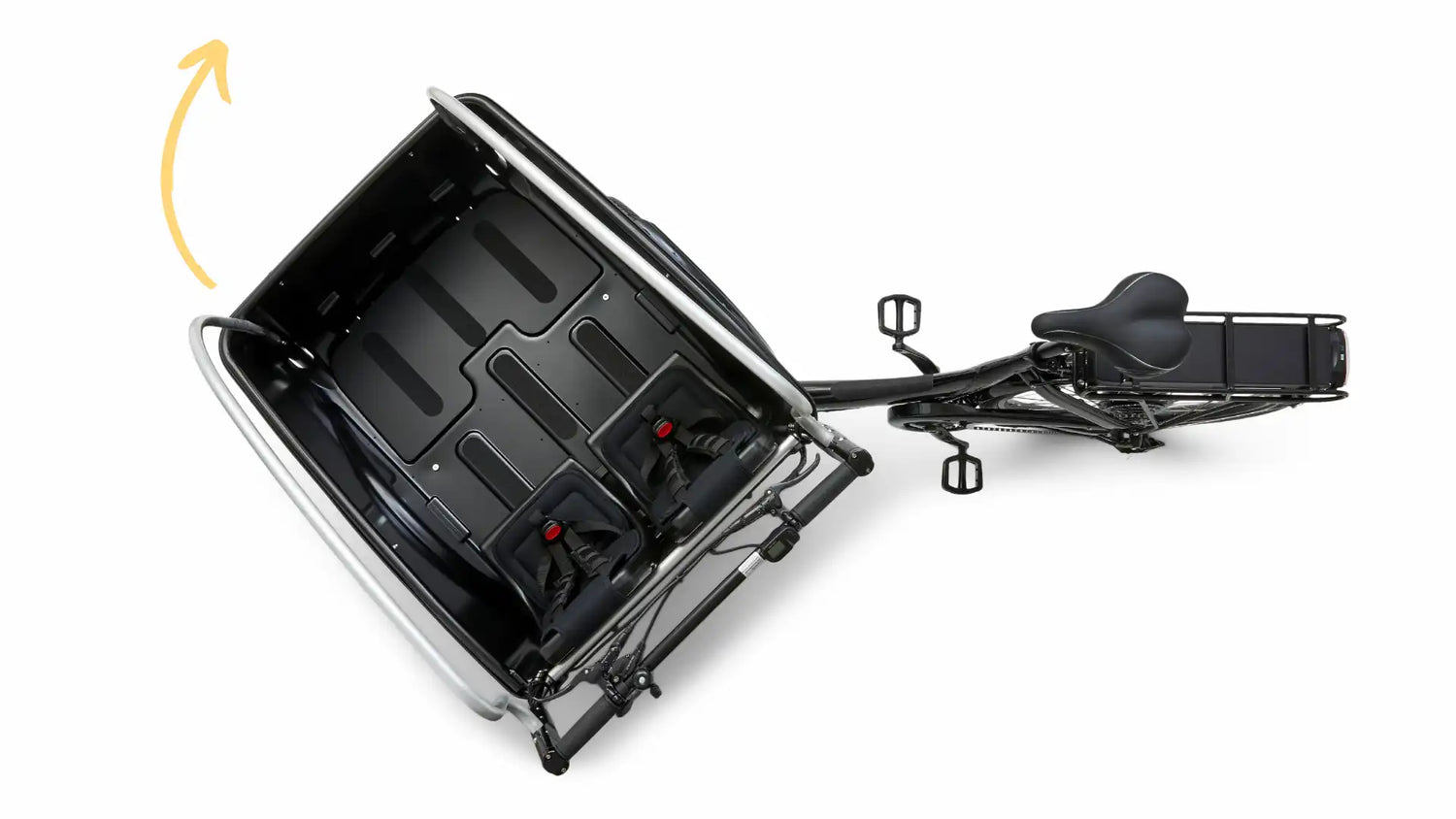

Cargoo has one of the smallest turning radii on the market, allowing it to make tight turns in tight spaces and even 180º. The lightweight aluminum frame improves maneuverability.

The stable 3-wheel platform ensures high stability during loading and unloading. Parking is easy with the 3-wheel design: activating the parking brake locks both front wheels, allowing you to safely park the bike on any terrain. A robust gas shock absorber softens the ride even with large cabin loads.

security features

Security before everything

Hydraulic disc brakes

Cargoo is equipped with three-wheel hydraulic disc brakes, which is the most powerful and safest brake option. They offer solid stopping power during all weather conditions, even when it's wet outside. Hydraulic disc brakes are superior in modulation, which means the ability to precisely and precisely control the braking force, so you can stop the bike whenever and wherever you want.

The braking system comes with a parking brake that is easily activated by pushing a dial on the left brake lever. This locks both front wheels, securing the cargo bike even on uneven terrain.

Head protection

Sturdy 22mm aluminum bars offer protection over children's heads for added safety. Holding the cockpit cover is its secondary purpose.

The cab hood, tires and cab base are equipped with reflectors for greater visibility.

Cab absorbs impacts

Our booth bases are formed from impact-resistant PE or PSPE materials without sharp edges. This improves the comfort and safety of children during the ride. The front frame of Winther cargo bikes is designed to effectively distribute and transfer impact forces.

Sitting safely

To increase child safety, the Cargoo features a low seating position in the cabin. This reassuringly restricts the field of vision of smaller passengers and also prevents them from reaching during the ride.

All seating solutions on the Cargoo are equipped with a 5-point harness as standard, ensuring everyone is securely strapped in during the ride. All baby seating solutions on Winther cargo bikes are rear-facing for added safety.

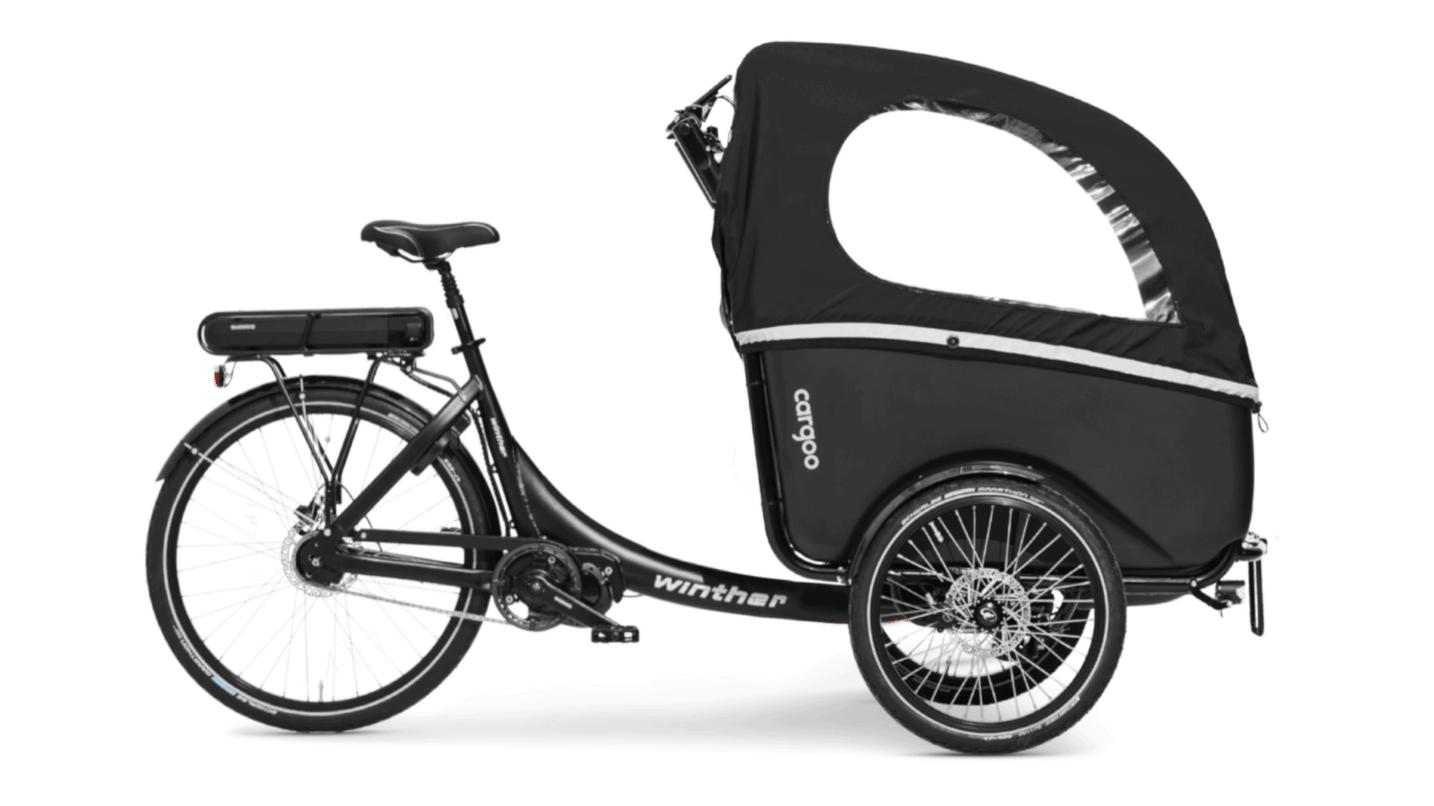

put stickers on it

Customize to your style

Putting stickers on your Cargoo is a great way to make it your own. The sides of the cabin leave plenty of room to be creative. Use the stickers to stand out from the crowd. For a unique and personal touch, put the family name on the cargo bike.

Both front and rear

Safety lights and reflectors

They are always included in the standard electric motor package for optimal safety. The bright lights are powered by the motor battery, eliminating the need to worry about having light in the dark. You can easily turn the lights on and off through the display on the handlebar.

Winther cargo bikes are equipped with reflectors on the front and rear as standard. The cab hood also has a reflective stripe. Combined with reflectors on the tires and pedals, you will always be visible when riding in the dark.

Easy access for children

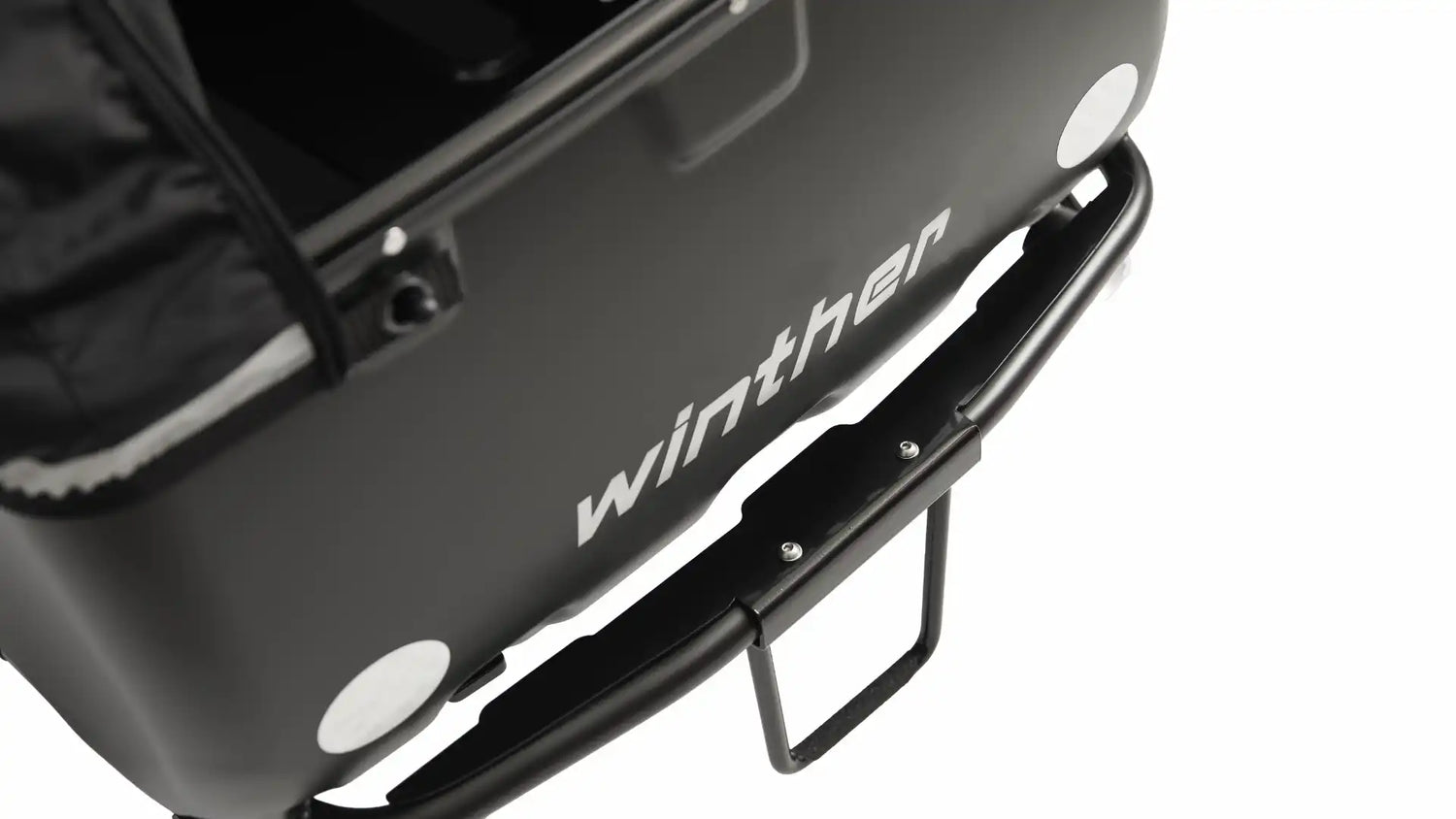

Front step

Facilitates the independent climbing of children. Plus, it makes it easier to carry smaller children or heavy items in and out of the cabin.

assistance benefits. we tell you everything

Engine and Gear Configurations

Shimano STePS E6100CRG (50 Nm) + 8-speed internal gearbox

The Shimano STePS E6100 provides the Winther Cargoo with a powerful and lightweight mid-drive motor combined with an 8-speed Alfine internal gear system and a shifter mounted on the right side of the handlebar. The motor can provide 250 watts and has a torque output of 54 Nm, giving Winther Cargoo plenty of power, both on steep climbs and during quick accelerations. The motor is extremely quiet and durable in all weather conditions.

Plus, with the Alfine 8-speed internal gear system, riders can easily shift between gears to find the right level of resistance for their riding needs. Internal gears provide a smooth and efficient shifting experience, allowing riders to maintain their momentum and power through various terrain and conditions.

The motor system is powered by a powerful 405 Wh (14 Ah equivalent) lithium-ion battery, located in the rear luggage rack. This location ensures balanced weight distribution for optimal handling and stability. Together with the motor, the battery gives you an estimated range of up to 55 km on a single charge, but of course, this depends on terrain, weather conditions, charging and level of assistance.

Controlling the engine and assistance levels is easy with the handlebar-mounted display. The display allows cyclists to select between 3 different power levels (Eco, Normal, High), providing variable levels of assistance according to their preferences and needs. This allows for a customized driving experience, whether conserving battery power on flatter terrain or getting an extra boost on steep inclines. In addition to its powerful motor and internal gear system, the Shimano STePS E6100 is also compatible with the AXA One-Key system. This feature allows riders to use the same key to lock both their battery and their bike, providing additional convenience and security.

Shimano STePS E6100CRG (60 Nm) + Di2 automatic gearbox with 5 internal speeds

The Shimano STePS E6100CRG motor found in the Winther Cargoo is a mid-drive motor with a power output of 250 watts and a torque rating of 60 Nm. It is known for being strong, light and silent. One of the notable features of this engine is its automatic gear shifting capability. Using Di2 technology, electronic gear changes occur automatically as you ride, making the 5 internal gear changes smooth and convenient. Upshift as you gain speed and downshift when you stop, ensuring optimal gear ratios at all times.

The motor system is powered by a high-capacity lithium-ion battery with a rating of 14Ah and an energy capacity of 405Wh. The battery is located in the rear rack of the cargo bike, making it easy to access for charging and replacement. With this battery, you can expect an estimated range of up to 60 km on a single charge, depending on several factors such as terrain, weather conditions, charging, and the level of assistance you use.

As for gear changes, the Shimano STePS E6100CRG allows manual control of gear changes, giving you the ability to override automatic gear shifting when necessary. This feature is especially useful when you are facing steep grades and need quick gear changes for optimal power and control.

Additionally, the Shimano STePS system is compatible with the AXA One-Key system, which allows you to use the same key for both your battery lock and your bike lock. This adds an extra level of convenience and security, as you only need one key to lock and unlock both components.

In short, the Shimano STePS E6100CRG motor in Winther Cargoo offers a powerful and efficient driving experience, with automatic gear shifting, a high-capacity battery and compatibility with the One-Key system. Whether you're climbing hills or crossing flat terrain, this engine and its features provide a smooth and enjoyable ride.

Bafang M410 (80 Nm) + Manual transmission 5 internal speeds

The powerful and lightweight Bafang M410 motor offers an unbeatable combination of performance and design. With its 5 internal speeds and handlebar-mounted shifting, this motor provides impressive power and versatility. The Bafang M410 has a torque output of 80 Nm and a power of 250 watts, allowing the Winther Cargoo to easily handle steep climbs and accelerate quickly. In addition, it operates silently and resistant in any weather conditions.

To power this exceptional motor system, Winther Cargoo relies on a high-capacity Bafang lithium-ion battery. With a capacity of 752 Wh (equivalent to 17.5 Ah), this battery provides long-lasting power for the motor. Conveniently located in the rear luggage rack, the battery, combined with the motor, offers an estimated range of up to 60 km on a single charge. It is important to note that actual range may vary depending on terrain, weather conditions, load, and level of assistance.

Controlling the engine and assistance levels is easy with the handlebar-mounted display. The display allows cyclists to select between 5 different power levels, providing variable levels of assistance according to their preferences and needs. This allows for a personalized driving experience, whether conserving battery power on flatter terrain or getting an extra boost on steep climbs.

The Bafang M410 also features a start assist feature, which helps the rider maneuver the cargo bike more easily when seated on it. This feature is particularly useful when you need an extra boost to start or navigate in tight spaces.

Bafang M410 (80 Nm) + Automatic transmission with 3 internal speeds

Bafang's 3-speed mechanical automatic gear shift is designed to improve your cycling experience. Gear shifting works automatically and is controlled by wheel speed and centrifugal force. This means you can maintain a smooth cadence without having to change gears manually. The automatic gear shift, located in the rear hub, eliminates the need for shift cables that can freeze in winter. This ensures minimal maintenance and guarantees a trouble-free driving experience, even in the coldest months.

Controlling the engine and assistance levels is easy with the handlebar-mounted display. The display allows cyclists to select between 5 different power levels, providing variable levels of assistance according to their preferences and needs. This allows for a personalized driving experience, whether conserving battery power on flatter terrain or getting an extra boost on steep climbs. The Bafang 410 also features a start assist feature, which helps the rider maneuver the cargo bike more easily by walking alongside it. This feature is particularly useful when you need an extra boost to start or navigate in tight spaces.

Thanks to its precise gear shifting mechanism, the 3-speed shifting system effortlessly enhances your ride. Depending on the wheel speed, the gears shift precisely, providing a smooth and enjoyable driving experience.

The motor system is powered by a high-performance Bafang lithium-ion battery, which boasts an impressive capacity of 752Wh (equivalent to 17.5 Ah). Conveniently located in the rear luggage rack, this battery provides enough power for your rides. With this motor and battery combination, you can expect an estimated range of up to 60 km on a single charge. However, please note that range may vary depending on factors such as terrain, weather conditions, load, and level of assistance.

  • Chart

    6061 Aluminum (rear), Steel (front)

  • Cabin base

    Polyethylene (PE) resistant to impacts and UV rays

  • Soft top

    Phthalate-free, rainproof nylon

  • Address

    Head tube-based to ensure stable and dynamic steering

  • Steering damping

    A position

  • Maximum load capacity

    Total weight: 250kg

    Load in cabin: 100 kg

    Driver: 110 kg

  • Dimensions

    Length: 207cm

    Width: 89cm

    Height: 114 cm

  • Cabin dimensions

    Length: 86cm

    Width: 89cm

    Height: 114 cm

  • Designer

    Leif Hagerup & Lars Malmborg
