Designed for safety and comfort

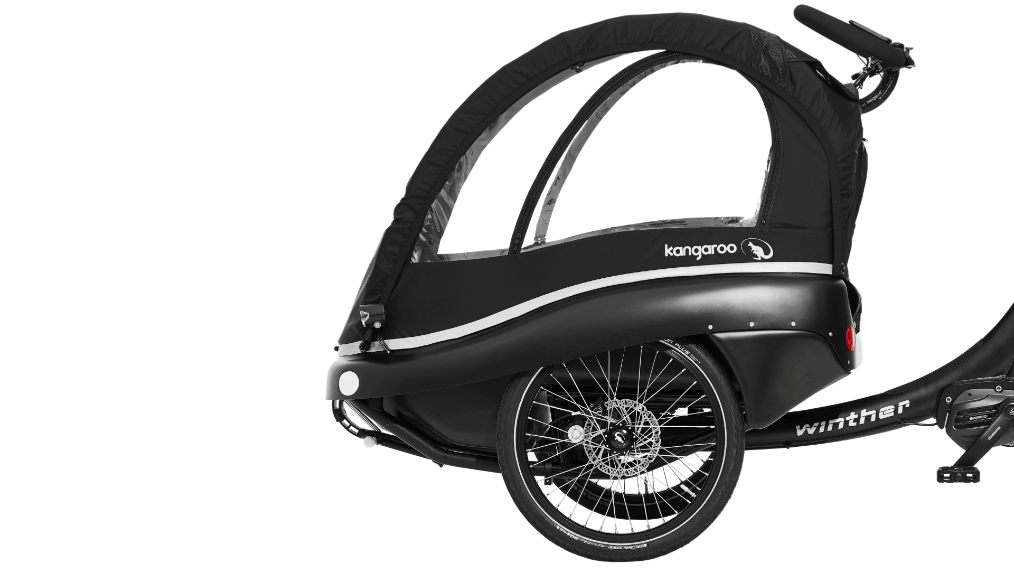

Torsion suspension system

It features a unique torsion suspension system integrated into the lightweight front frame, maximizing comfort and safety. This system allows the bike to move freely over uneven terrain while reducing vibrations felt by the driver and passengers in the cabin. Additionally, it allows the front of the bike to lean when cornering, providing a more responsive ride.

Ventilation, safety and fun

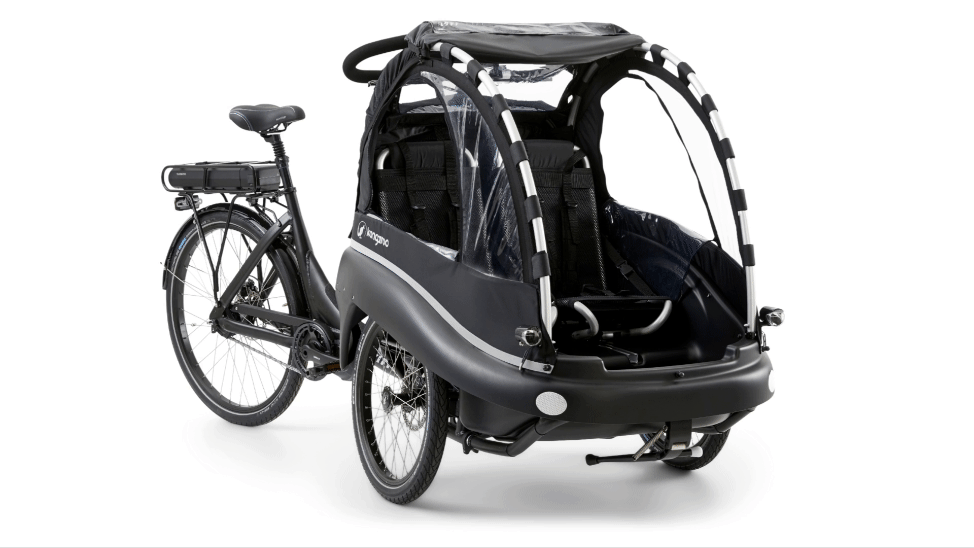

Protective and flexible hood

The Cabin Hood has four windows and an opening rear panel. Plus, it has a sunroof on top that can be opened to easily keep an eye on the kids while they ride their bikes. When the sunroof and side windows are open, fresh air can easily circulate inside the cabin of the cargo bike, making it cool and comfortable on hot days. These openings are designed for external access to avoid the risk of children's hands sticking out of traffic.

The canopy is made of water-repellent fabric and durable YKK zippers make it easy to open and close the front and windows. The rear panel also opens easily and has a large mesh pocket that provides access to the storage compartment behind the seats.

The strong 22mm aluminum bars not only offer protection over children's heads for added safety, but also serve as handles to hold the cabin cover.

Timely at any time of the day

Snap? No problem

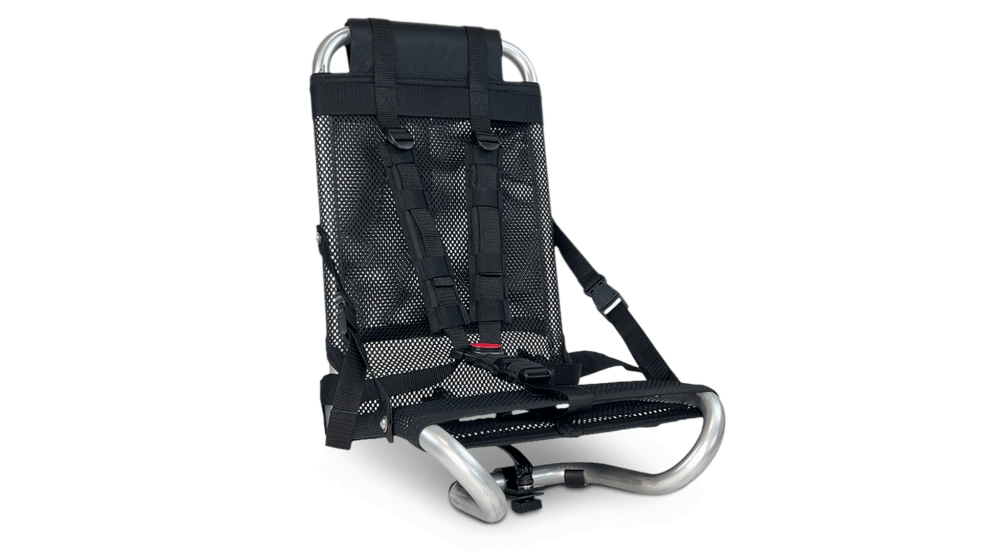

The Child Seat Luxe makes it comfortable for your child to take a nap on the way home. The mesh seats can be reclined into a lounging position for added comfort if your child falls asleep on the way home. With a quick release clamp under the child seat, you can also easily position the seat facing forward or rearward as desired.

The seats come standard with a child-recommended 5-point harness to provide extra safety when riding a cargo bike. As your children grow, you can change it up and use just the included hip harness. The Kangaroo Luxe child seat makes the ride even more comfortable for the child, as the mesh structure provides suspension in addition to the built-in torsion suspension. It's ideal when you use your cargo bike frequently and for longer rides.

security features

Security before everything

Hydraulic disc brakes

Kangaroo LUXE is equipped with three-wheel hydraulic disc brakes, which is the most powerful and safest braking option. They offer solid stopping power during all weather conditions, even when it's wet outside. Hydraulic disc brakes are superior in modulation, which means the ability to precisely and precisely control the braking force, so you can stop the bike whenever and wherever you want.

The braking system comes with a parking brake that is easily activated by pushing a dial on the left brake lever. This locks both front wheels, securing the cargo bike even on uneven terrain.

Head protection

Sturdy 22mm aluminum bars offer protection over children's heads for added safety. Holding the cockpit cover is its secondary purpose.

The cab hood, tires and cab base are equipped with reflectors for greater visibility.

Cab absorbs impacts

Our booth bases are formed from impact-resistant PE or PSPE materials without sharp edges. This improves the comfort and safety of children during the ride. The front frame of Winther cargo bikes is designed to effectively distribute and transfer impact forces.

Sitting safely

To increase child safety, the Kangaroo LUXE features a low seating position in the cabin. This reassuringly restricts the field of vision of smaller passengers and also prevents them from reaching during the ride.

All seating solutions on the Kangaroo LUXE are equipped with a 5-point harness as standard, ensuring everyone is securely strapped in during the ride. All baby seating solutions on Winther cargo bikes are rear-facing for added safety.

Versatile storage for every adventure

Convenience

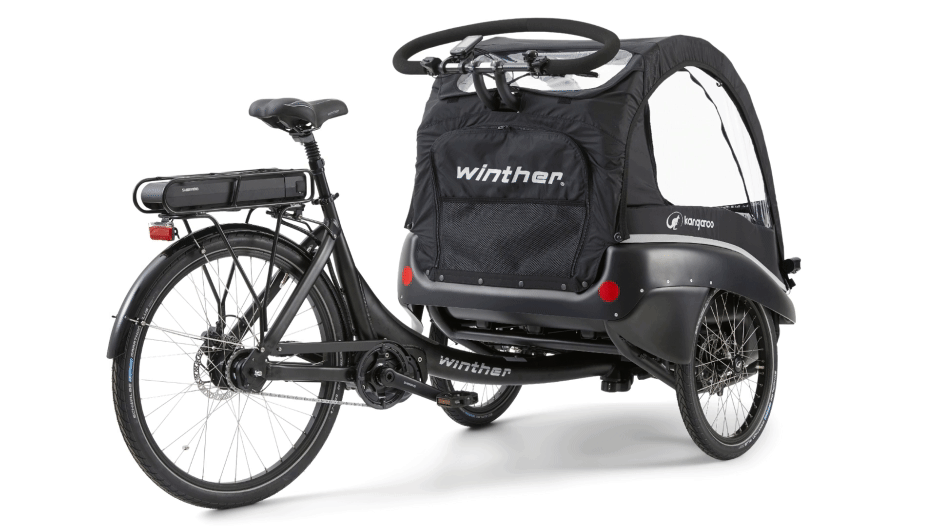

Behind the seats there is plenty of space to store backpacks, groceries and other items, ensuring balanced weight distribution for stable trips. It also prevents overcrowding in the cabin. A zipper closure on the back provides easy access to the storage compartment, and the mesh pocket on the back conveniently stores smaller items like gloves, snacks, and water bottles.

With the quick release clamp located under the Luxe infant seat, you can quickly customize the size of the storage compartment to suit your needs. If you need to make large purchases, you can easily move one or both seats forward to maximize the space behind the seats. With a snap you can also quickly remove the seats completely and you will have plenty of space for shopping etc.

makes it easier for children to enter and exit the cabin alone

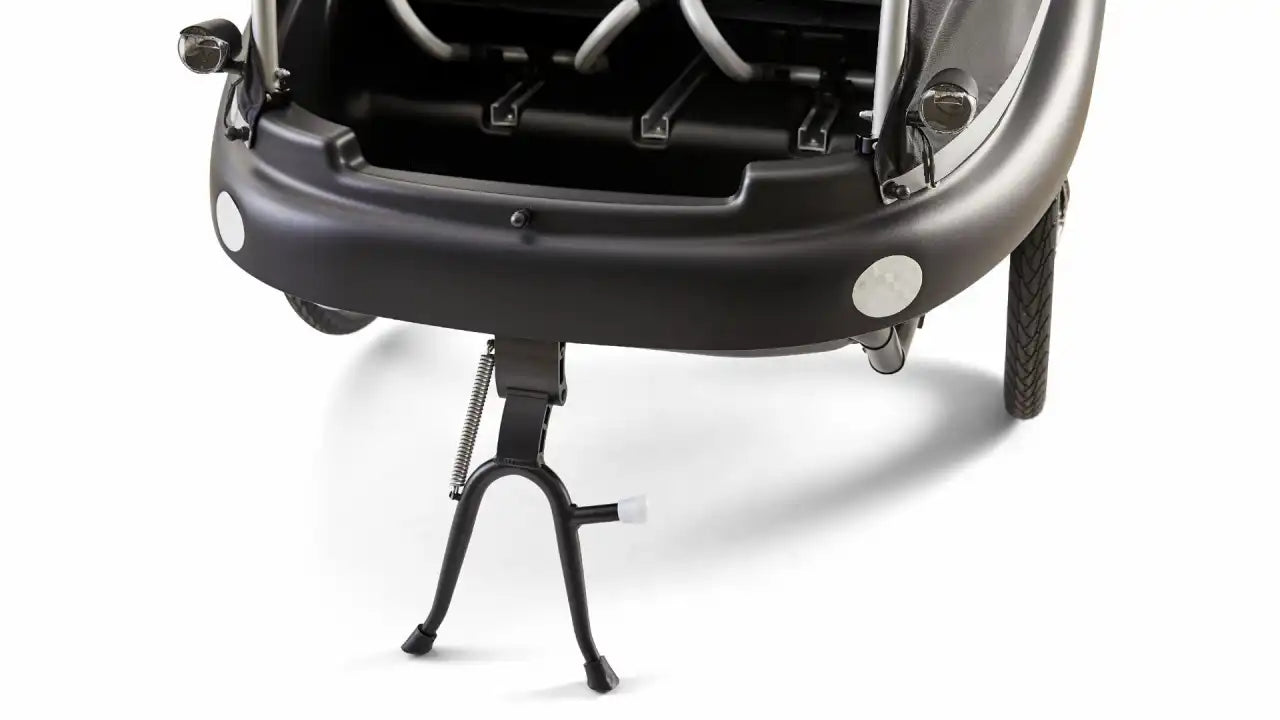

Easy entry into the cabin

This prevents adults from having to do a lot of lifting. Plus, it's a great way to encourage kids to explore and be independent.

The kickstand at the front ensures that children can easily and safely enter and exit the cabin without the adult having to counterbalance the cargo bike.

A pleasure to drive

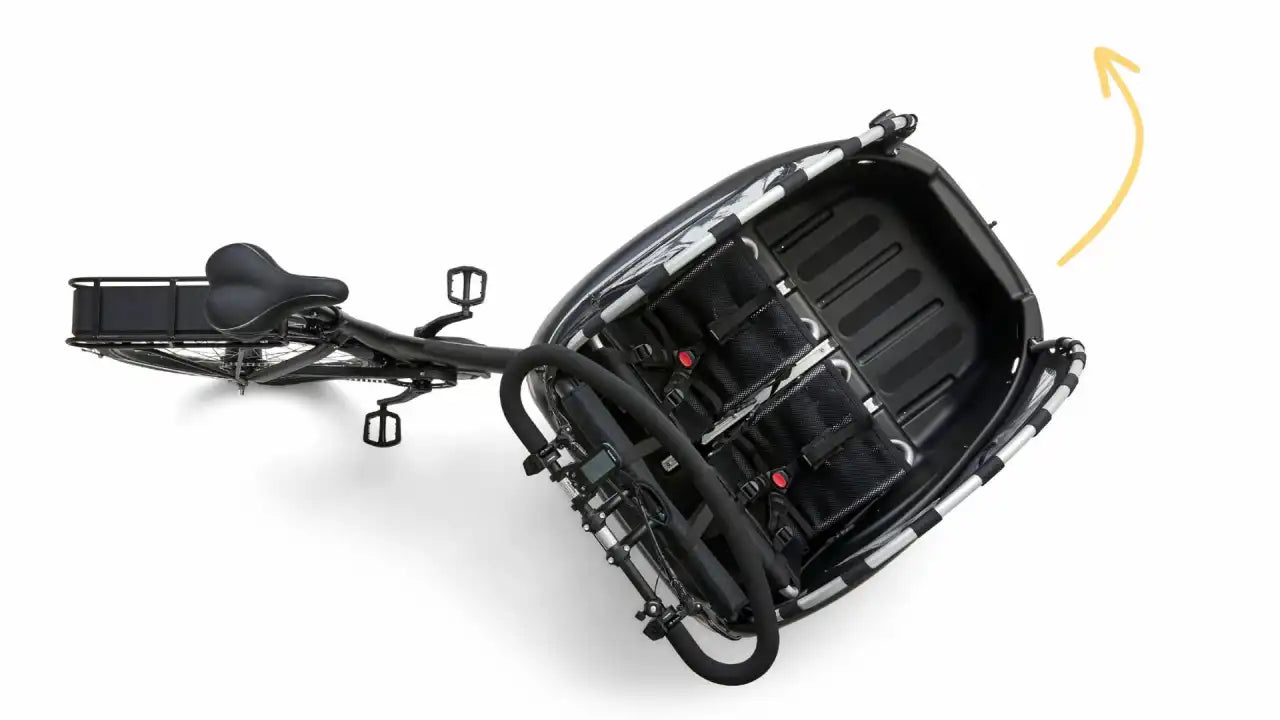

Spin with ease

Kangaroo Luxe has one of the smallest turning circles on the market, allowing you to make tight turns in tight spaces and even make U-turns. The lightweight aluminum frame improves maneuverability, making riding a pleasure.

The stable 3-wheel platform ensures great stability during loading and unloading. Parking the bike is easy with the 3-wheel design: activating the parking brake on the hydraulic disc system locks the two front wheels, allowing you to safely park the bike on any terrain.

A robust gas shock absorber softens the ride even with larger cabin loads.

Perfect size

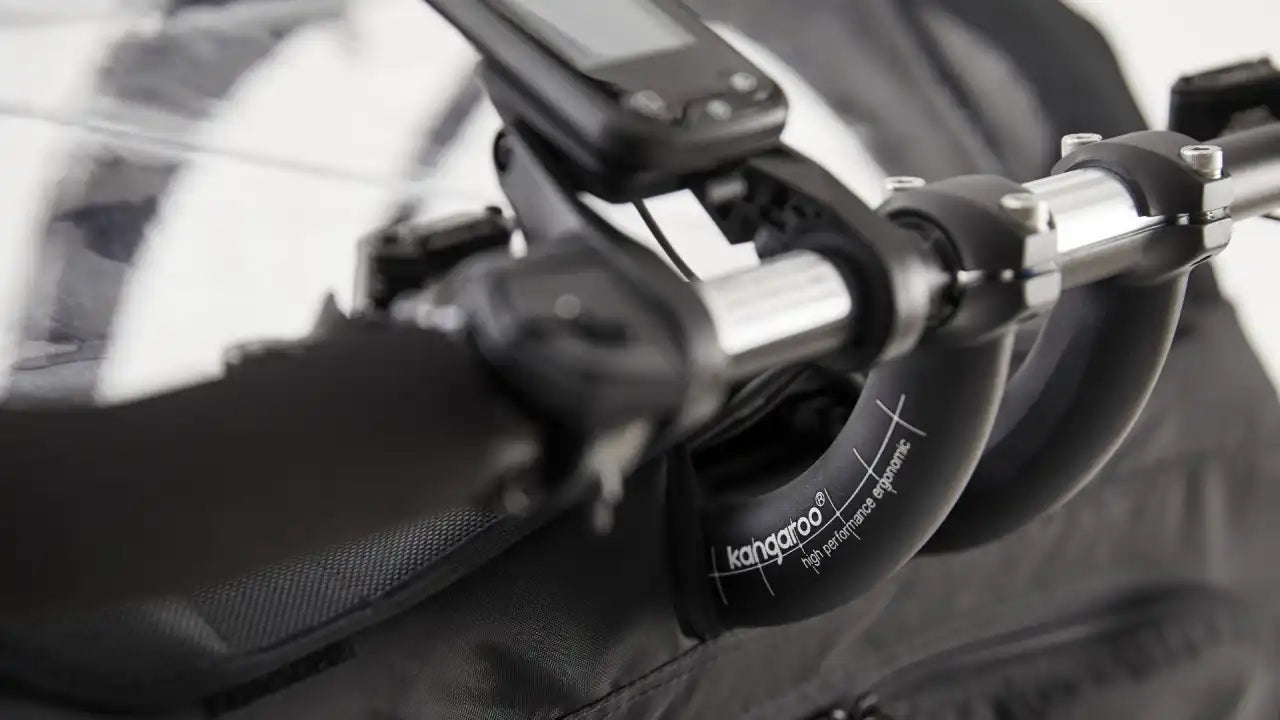

Adjustable handlebar

The handlebars of the Kangaroo Luxe are adjustable to fit each rider. Everyone is different and with an adjustable handlebar, it's easy to find the perfect riding position. Maybe you need to share the bike with a partner much shorter or taller than you? There is no problem with the adjustable handlebars.

assistance benefits. we tell you everything

Engine and Gear Configurations

Shimano STePS E6100CRG (50 Nm) + 8-speed internal gearbox

The Shimano STePS E6100 provides the Winther Cargoo with a powerful and lightweight mid-drive motor combined with an 8-speed Alfine internal gear system and a shifter mounted on the right side of the handlebar. The motor can provide 250 watts and has a torque output of 54 Nm, giving Winther Cargoo plenty of power, both on steep climbs and during quick accelerations. The motor is extremely quiet and durable in all weather conditions.

Plus, with the Alfine 8-speed internal gear system, riders can easily shift between gears to find the right level of resistance for their riding needs. Internal gears provide a smooth and efficient shifting experience, allowing riders to maintain their momentum and power through various terrain and conditions.

The motor system is powered by a powerful 405 Wh (14 Ah equivalent) lithium-ion battery, located in the rear luggage rack. This location ensures balanced weight distribution for optimal handling and stability. Together with the motor, the battery gives you an estimated range of up to 55 km on a single charge, but of course, this depends on terrain, weather conditions, charging and level of assistance.

Controlling the engine and assistance levels is easy with the handlebar-mounted display. The display allows cyclists to select between 3 different power levels (Eco, Normal, High), providing variable levels of assistance according to their preferences and needs. This allows for a customized driving experience, whether conserving battery power on flatter terrain or getting an extra boost on steep inclines. In addition to its powerful motor and internal gear system, the Shimano STePS E6100 is also compatible with the AXA One-Key system. This feature allows riders to use the same key to lock both their battery and their bike, providing additional convenience and security.

Shimano STePS E6100CRG (60 Nm) + Di2 automatic gearbox with 5 internal speeds

The Shimano STePS E6100CRG motor found in the Winther Cargoo is a mid-drive motor with a power output of 250 watts and a torque rating of 60 Nm. It is known for being strong, light and silent. One of the notable features of this engine is its automatic gear shifting capability. Using Di2 technology, electronic gear changes occur automatically as you ride, making the 5 internal gear changes smooth and convenient. Upshift as you gain speed and downshift when you stop, ensuring optimal gear ratios at all times.

The motor system is powered by a high-capacity lithium-ion battery with a rating of 14Ah and an energy capacity of 405Wh. The battery is located in the rear rack of the cargo bike, making it easy to access for charging and replacement. With this battery, you can expect an estimated range of up to 60 km on a single charge, depending on several factors such as terrain, weather conditions, charging, and the level of assistance you use.

As for gear changes, the Shimano STePS E6100CRG allows manual control of gear changes, giving you the ability to override automatic gear shifting when necessary. This feature is especially useful when you are facing steep grades and need quick gear changes for optimal power and control.

Additionally, the Shimano STePS system is compatible with the AXA One-Key system, which allows you to use the same key for both your battery lock and your bike lock. This adds an extra level of convenience and security, as you only need one key to lock and unlock both components.

In short, the Shimano STePS E6100CRG motor in Winther Cargoo offers a powerful and efficient driving experience, with automatic gear shifting, a high-capacity battery and compatibility with the One-Key system. Whether you're climbing hills or crossing flat terrain, this engine and its features provide a smooth and enjoyable ride.

Bafang M410 (80 Nm) + Manual transmission 5 internal speeds

The powerful and lightweight Bafang M410 motor offers an unbeatable combination of performance and design. With its 5 internal speeds and handlebar-mounted shifting, this motor provides impressive power and versatility. The Bafang M410 has a torque output of 80 Nm and a power of 250 watts, allowing the Winther Cargoo to easily handle steep climbs and accelerate quickly. In addition, it operates silently and resistant in any weather conditions.

To power this exceptional motor system, Winther Cargoo relies on a high-capacity Bafang lithium-ion battery. With a capacity of 752 Wh (equivalent to 17.5 Ah), this battery provides long-lasting power for the motor. Conveniently located in the rear luggage rack, the battery, combined with the motor, offers an estimated range of up to 60 km on a single charge. It is important to note that actual range may vary depending on terrain, weather conditions, load, and level of assistance.

Controlling the engine and assistance levels is easy with the handlebar-mounted display. The display allows cyclists to select between 5 different power levels, providing variable levels of assistance according to their preferences and needs. This allows for a personalized driving experience, whether conserving battery power on flatter terrain or getting an extra boost on steep climbs.

The Bafang M410 also features a start assist feature, which helps the rider maneuver the cargo bike more easily when seated on it. This feature is particularly useful when you need an extra boost to start or navigate in tight spaces.

Bafang M410 (80 Nm) + Automatic transmission with 3 internal speeds

Bafang's 3-speed mechanical automatic gear shift is designed to improve your cycling experience. Gear shifting works automatically and is controlled by wheel speed and centrifugal force. This means you can maintain a smooth cadence without having to change gears manually. The automatic gear shift, located in the rear hub, eliminates the need for shift cables that can freeze in winter. This ensures minimal maintenance and guarantees a trouble-free driving experience, even in the coldest months.

Controlling the engine and assistance levels is easy with the handlebar-mounted display. The display allows cyclists to select between 5 different power levels, providing variable levels of assistance according to their preferences and needs. This allows for a personalized driving experience, whether conserving battery power on flatter terrain or getting an extra boost on steep climbs. The Bafang 410 also features a start assist feature, which helps the rider maneuver the cargo bike more easily by walking alongside it. This feature is particularly useful when you need an extra boost to start or navigate in tight spaces.

Thanks to its precise gear shifting mechanism, the 3-speed shifting system effortlessly enhances your ride. Depending on the wheel speed, the gears shift precisely, providing a smooth and enjoyable driving experience.

The motor system is powered by a high-performance Bafang lithium-ion battery, which boasts an impressive capacity of 752Wh (equivalent to 17.5 Ah). Conveniently located in the rear luggage rack, this battery provides enough power for your rides. With this motor and battery combination, you can expect an estimated range of up to 60 km on a single charge. However, please note that range may vary depending on factors such as terrain, weather conditions, load, and level of assistance.

  • Chart

    6061 aluminum (front and rear)

  • Cabin base

    Polyethylene (PE) resistant to impacts and UV rays

  • Soft top

    Phthalate-free, rainproof nylon

  • Address

    Based on head tube to ensure stable and dynamic steering.

  • Steering damping

    1 independent torsion suspension adjustment on the front wheels

  • Maximum load capacity

    Total weight: 250kg

    Load in cabin: 100 kg

    Driver: 110 kg

  • Dimensions

    Length: 210cm

    Width: 90cm

    Height: 120 cm

  • Cabin dimensions

    Length: 95cm

    Width: 70 cm (77 elbow width)

    Height: 77 cm (from cabin seat to hood)

  • Designer

    Leif Hagerup & Lars Malmborg
